Hand Arm Vibration System from Castle


Be the first to review this product

Quick Overview

This is our all-in-one Hand Arm Vibration System, which brings together everything you need to comply with the Control of Vibration at Work Regulations (2005). This full system is simple to use, low cost and enables you to protect your valuable workforce from Hand Arm Vibration. .


Talk to an expert about this product

All in One Hand Arm Vibration System
Vexo H Vibration Meter HAVi Vibration Indicator Vexo H in case Castle Hand Arm Vibration System

Buy Online

* Required Fields


Boxed Weight (kg) 1
Brand Castle Group
Measurement Hand Arm Vibration
Available Outside the UK? Yes

The Castle All In One Hand Arm Vibration System

The Castle All-in-One Hand Arm Vibration System provides you with all of the necessary equipment to both measure the vibration levels of your tools, and very accurately monitor the exposure to your employees. The system also comes with VIBdataPro, which provides you with instant access to all of your tool measurement data for analysis and reporting.

The Castle All In One Hand Arm Vibration System

1 x Castle Vexo H

Measure vibration levels with the Vexo H Tri-Axial Vibration meter and reduce your risk of hand arm vibration syndrome (HAVS). This powerful meter is capable of accurate measurements while remaining simple to use. Designed with only 3 operational buttons, it is possible to take measurements with ease which can be easily read on the large colour display or stored for later download to Vibdata Vibration Analysis Software. The rechargeable battery pack also ensures your vibration meter is ready and waiting whenever you need it. Built to be tough, in a small and rugged case, the Vexo H Hand-Arm Vibration Meter can be used anywhere and effectively measure vibration exposure to ensure HAVS doesn't become a problem with your workforce.

5 x HAVi Tool Timers

The HAVi is simply strapped to the machine being used either by cable ties or with the fabric tie provided. Once the HAVi is running the trigger times are continually monitored and displayed using the HSE points system.

1 x Castle VibDataPro Software

Download logging data from the Castle range of vibration meters into one place. VIBdataPro gives you quick access to all your data and allows you to analyse data and export for reporting. For use with Castle Group GA2005 Excieo Vibration meters and GA2006H Vexo Vibration Kit.

Optional - Hand Arm Vibration Tags

Hand Arm Vibration Tool Tags are rugged attachments designed to inform the operator the vibration level of each tool. Simply fill in the tag and attach it to each tool after taking the vibration measurement with the Vexo.


Technical Specification

Instrument Standards ISO 8041 : 2005 Human Response to Vibration. ISO 5349 : 2001 Measurement and evaluation of human exposure to hand-transmitted vibration
Range (Integration = Acceleration) Low: 0.05 - 200.0m/s-2 / 0.005 - 20.4g High: 0.50 - 2000.0m/s-2 / 0.05 - 204.0g
Measurement Channels One
Parameters Acceleration: Arms, Aeq, Amax, Peak, Vector Sum, HSE Exposure Points, EAV and ELV
Linear Operating Range 72 dB
Frequency Weightings WH - Hand Arm Filter
Memory Flash memory storing up to 992 recordings
Transducer Castle KD1010, 10mV/g
Noise Floor <0.002 m/s-2 - Low Range <0.020 m/s-2 - High Range
Display Full Colour Graphic OLED Display (160 x 128)
Batteries NiMH re-chargeable cell pack- typically 10 hours continuous use
Connections Input: 3.5mm Stereo Jack Socket AC Output: 4 Pole 3.5mm Jack Socket Download: USB Micro B (Cable Supplied) Recharge: DC Socket (Charger & Cable Supplied)
Language English UK, English US, Chinese, French, German, Italian, Portuguese Brazilian, Russian, Spanish
Environmental Temperature Operating Range: -10 to + 50ºC Humidity: Up to 90% RH Non Condensing
Electromagnetic Compatibility Designed in accordance with the following Electromagnetic Compatibility Directives: SI 2005/281 2004/108/EC
Case High Impact ABS plastic with tactile membrane keypad

What's in the Box

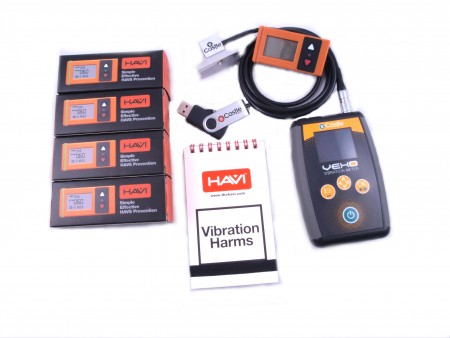

This Kit Includes:

  • 1 x Castle Tri-Axial Hand Arm Vibration Meter GA2006H (Vexo H)

  • 2 x Accelerometer Mounting Blocks KD1219 and KD1218

  • 5 x HAVi Tool Timers

  • 1 x Castle VibDataPro Software

  • 5 x Vibration Logbooks
