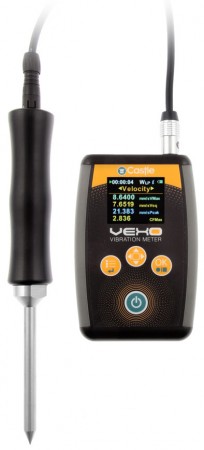

Castle GA2006S Vexo Single Axis Machinery Vibration Meter


Be the first to review this product

Quick Overview

The Castle Vexo S is a single axis vibration meter designed specifically for condition monitoring and machinery fault diagnostics. Housed in a rugged case the Vexo is equipped with a spike probe accelerometer allowing for highly accurate vibration readings.

**Please contact us for latest delivery information on this item**


Talk to an expert about this product

GA2006S Vexo Single Axis Machinery Vibration Meter
GA2006S Vexo Single Axis Machinery Vibration Meter GA2006S Vexo Single Axis Machinery Vibration Meter Castle GA2006S Vexo Single Axis Machinery Vibration Meter Castle GA2006S Vexo Single Axis Machinery Vibration Meter video

Buy Online

* Required Fields


Brand Castle Group
Measurement Condition Monitoring
Available Outside the UK? Yes
The Vexo S Single Axis Vibration Meter is very easy to use, only having 4 buttons and a simple menu system, with a large colour display it's also very simple to take instant readings. Readings can be stored in the Vexo S for later download to the VibdataPro Vibration Software for further analysis and data can also be used for trending analysis so you know when machinery is starting to fail. The Vexo S come supplied with a rechargeable battery and a charger. Features:
  • Single Axis mode for an easy setup
  • Large colour display Screen
  • Large 'Flash' memory
  • Re-chargeable battery and charger
  • 3 operational buttons for simple use
  • Built with a rugged accelerometer and cable
  • Machinery condition to ISO 10816-1, 3 & 7
  • Bearing condition indication
  • Trending analysis (with optional VibdataPro)
  • Environmental Vibration
Have A Look At Our HAV's In A Day Vibration Training Course


Technical Specification

Instrument Standards: BS ISO 10816-1 : 1995 + A1 : 2009 BS ISO 10816-3 : 2009 BS ISO 10816-7 : 2009 Range: (Integration = Acceleration) Low: 0.005 - 20.0m/s-2 / 0.00051 - 2.04g High: 0.05 - 200.0m/s-2 / 0.0051 - 20.4g Range: (Integration = Velocity) Low: 0.06 - 250mm/s High: 0.6 - 2500mm/s Range: (Integration = Displacement) Low: 4.0 - 16500um/s High: 40.0 - 165000um/s Measurement Channels: One Parameters: Acceleration: Arms, Aeq, Amax, Peak, Crest Factor Velocity: Vrms, Veq, Vmax, Peak, Crest Factor Displacement: Drms, Deq, Dmax, Peak to Peak, Crest Factor Alarms: Machine, Pump, Bearing Linear Operating range: 72 dB Frequency Weighting: WFL - 2Hz to 8kHz WLP - 2Hz to 1kHz WHP - 1kHz to 8kHz Memory: Flash memory storing up to 992 recordings Transducer: Castle KD1011, 100mV/g Noise Floor: <0.002 m/s-2 - Low Range <0.020 m/s-2 - High Range Display: Full Colour Graphic OLED Display (160 x 128) Batteries: NiMH re-chargeable cell pack Typically 10 hours continuous use Connections: Input: 3.5mm Stereo Jack Socket Download: USB Micro B (Cable Supplied) Recharge: DC Socket (Charger & Cable Supplied) Environmental: Temperature Operating Range: -10 to + 50ºC Humidity: Up to 90% RH Non Condensing Electromagnetic Compatibility: Designed in accordance with the following Electromagnetic Compatibility Directives: SI 2005/281 2004/108/EC Case: High Impact ABS plastic with tactile membrane keypad

What's in the Box

This Kit Includes:

  • GA2006S Vexo Single Axis Vibration Meter
  • Vexo Carry Case
  • KD1206 Spike Probe
  • KD1011 Accelerometer
  • ZL1097-01 Accelerometer Cable
  • PC009 Vib Data Lite (or Vib Data Pro if selected)
  • Vexo S Charger
