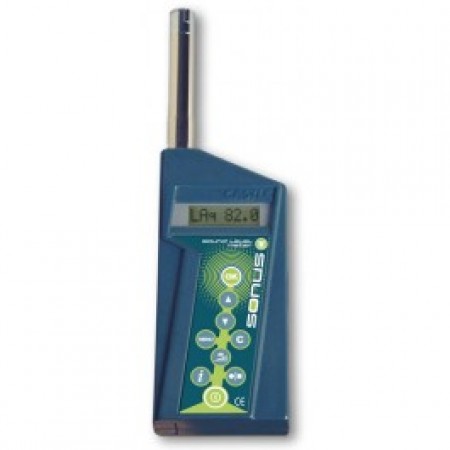

Sound Pressure Level Meter - Castle Sonus GA116E

01GA116E

Quick Overview

The Castle Sonus GA116E Sound Pressure Level Meter is the ideal handheld instrument for all your environmental noise measurements to BS 4142:2014 standard for Rating and Assessing Industrial and Commercial Sound.

The meter itself boasts a range of features, including full data logging capabilities with PC software, a total linear measurement span of 108dB, integrating features, as well as an impressive noise floor to enable you to measure low levels of ambient noise. At such an affordable price, this credible, fully compliant, reliable and high performing environmental sound meter gives you a lot for your money.

Price:

Did you know you can also:

Rent this product

Attend a training course

Calibrate your kit

Sound Pressure Level Meter - Castle Sonus GA116E

Buy Online

*Tripod Compatible

*Initial Calibration

Castle Certified Calibration
Castle Certified Calibration +£45.00
UKAS Calibration +£395.00

Accessories

Dosemeter Plugin Microphone +£245.00
Kit Case KA010A +£120.00
GA611 Class 1 Calibrator +£505.00
dBdataPRO Software +£199.00

* Required Fields

£1,635.00

Qty:

Add to Compare

£1,635.00

Brand	Castle Group
Application	Noise at Work
Features	Data Logging
Weightings	A, C, Z
Measurement Parameters	Leq, (Percentiles) Ln's
Available Outside the UK?	Yes

Castle Sonus GA116E Class 1 Environmental Sound Level Meter

There are a number of system packages available to suit many applications from simple tasks such as alarm monitoring, to a fully weatherproof system for long-term environmental solutions, there are also dedicated packages for Noise at Work requirements.

Features

Measures Lp, Leq, Lmax, LE, L10, L90, L(user)
Measures parameters simultaneously including LAeq and either LZeq or LCeq
Under range and Overload indicators
A, C or Z frequency weighting selection
A, C or Z Peak measurements
‘Slow’, ‘Fast’ and ‘Impulse’ time weighting selection
Save results to internal flash memory
Download data to a PC via a USB connection
Noise Analysis Software included with the meter
Small and light weight, fits into small shirt or jacket pocket and also supplied with a strong pocket clip.
Lockable Key pad through options
Single battery operation of typically 12 hours
Weatherproof system option for long term outdoor monitoring

Technical Specification

Instrument Standards: IEC 61672-1 : 2002 Class 1 Group X Level Ranges:Level ranges:

RANGE	DISPLAY RANGE	LINEAR RANGE	PEAK RANGE
20-90	19 – 93dB	22 – 90dB	30 – 93dB
40-110	39 – 113dB	40 – 110dB	50 – 113dB
60-130	59 – 133dB	60 – 130dB	70 – 133dB

Measuring Channels	Two
Parameters	Lp, Leq, Lmax, Apeak, Cpeak, Zpeak, LE, L10, L90, Ln (user selectable), Measurement Run Time, Overload, Interval Duration
Linear Operating Range	70dB
Frequency Weighting	‘A’, ‘C’ and ‘Z’ Combinations of ‘A’, ‘A’&’C’ simultaneous or ‘A’&’Z’ simultaneous available for Lp, Leq and Lmax
Time Weighting	‘Slow’, ’Fast’ and ‘Impulse’
Percentiles	L10, L90 and either L1 , L5 , L50 , L95 , L99
Memory	2100 Data Intervals Maximum in one or multiple recordings
Microphone (Type Free Field)	ACO 7146 pre-polarized ½” condenser microphone, 50mV/Pa
Microphone Preamplifier	Low Noise, Removable Preamplifier
Noise Floor	GA116L: <12.0dB(A) , <12.0dBC , <14.5dB(Z)
Display	Alphanumeric LCD with Contrast Control, digit size 7mm x 5mm
Batteries	1 x PP3 (9V) - Typically 12 hours continuous use
External Power	12v - 18v via Multi Purpose I/O Socket
Connections	9 Pin Multi Purpose I/O Socket for: - USB (Cable Supplied), AC Output, External Power
Environmental	Temperature Operating Range: -10 to + 50ºC Humidity: Up to 90% RH Non Condensing
Electromagnetic Compatibility	IEC 61672-1 : 2002
Case	High Impact ABS plastic with membrane keypad
