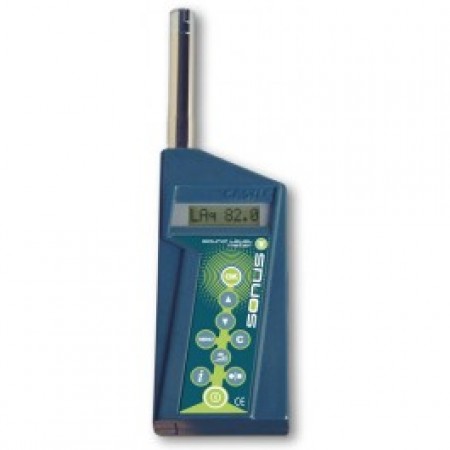

Castle Sonus GA216L Data Logging Class 2 Sound Level Meter

01GA216L

Be the first to review this product

Quick Overview

The Sonus GA216L Sound Level Meter is a fully compliant, integrating and data logging instrument, capable of a wide diversity of applications including Noise at Work and Environmental Noise monitoring.

Price:

Talk to an expert about this product




Class 2 Sound Level Meter
Class 2 Sound Level Meter Castle Sonus GA216L GA216L Sound Meter Sonus GA216L Sound Meter

Buy Online

* Required Fields

£975.00

£975.00
Brand Castle Group
Application Environmental Noise, Noise at Work
Features Data Logging
Weightings A, C, Z
Measurement Parameters Leq
Available Outside the UK? Yes

Data Logging Class 2 Sound Level Meter

The Sonus GA216L Sound Level Meter is a fully compliant, integrating and data logging instrument, capable of a wide diversity of applications including Noise at Work and Environmental Noise monitoring.

This Class 2 Sound Level Meter provides you with extensive features in a hard wearing, proven instrument for a very competitive price.

It's dual-measurement feature allows you to measure two different parameters simultaneously, meaning you only need to take one noise measurement to capture the data that you need. For Noise at Work assessments this also means you'll have the correct parameters recorded to determine the most suitable hearing protection using the HML method, a function available in dBdataPro software.

Noise Analysis Software

Connectivity to your PC is via high speed USB, and the USB cable is supplied with the instrument. You also recieve access to the free noise analysis software, dBdataLITE. Upgrade to dBdataPRO is optional and can be done at the time of purchase or later over the telephone.

The PRO Upgrade includes the following features:

  • Hearing Protection Database
  • Dose Calculator
  • Zoom And Cut Data
  • Extended Report Printouts
  • Copy And Paste Graphs

Technical Specification

Standards IEC61672-1-2002 (Sound Level Meters) IEC61252-1993 (Personal Sound Exposure Meters) Level ranges:
RANGEDISPLAY RANGELINEAR RANGEPEAK RANGE
30-10029 – 101dB30 – 100dB40 – 103dB
50-12059 – 121dB50 – 120dB60 – 123dB
70-14069 – 141dB70 – 140dB80 – 143dB
Linear Operating Range 70dB
Detector Characteristics RMS and Peak
Frequency Weighting ‘A’, ‘C’ & ‘Z’ Weighted in Accordance with IEC 61672-1-2002 Combinations of ‘A’, ‘A’&’C’ simultaneous or ‘A’&’Z’ simultaneous available for Leq, Lmax and Pmax
Time Weighting ‘Slow’, ’Fast’ and ‘Impulse’ in Accordance with IEC 61672-1-2002
Exchange Rate 3dB, 4dB or 5dB
Criterion Level 75dB, 80dB, 85dB or 90dB
Threshold Level -5dB, -10dB or OFF
Peak 3dB above top of selected range
Display Custom alphanumeric LCD, digit size 7mm x 5mm
Memory 2100 Data Intervals Maximum
Microphone/ Preamplifier ACO 7146A pre-polarised ½” condenser microphone, 25mV / Pa
Calibration 91.0 to 120.0dB @ 1KHz
Batteries 1 x PP3 (9V) Approximately 12 hours continuous use
Operating Temperature Operating Range: -10 to + 50ºC
Humidity Effect: < 0.5dB from 25% to 90% RH
Vibration No effect on instrument

What's in the Box


  • GA216L Data Logging Class 2 Sound Level Meter

  • USB Cable

  • dBdataLITE Noise Analysis Software
