dBAir Sound Meter System for Safety Managers

05NK101

Quick Overview

Designed specifically for Safety Managers, the dBAir Safety Managers System comprises everything you require to carry out assessments to the Control of Noise at Work Regulations 2005, as well as being the ideal system for International Occupational Health Monitoring.


The Castle dBAir works wirelessly with The Castle Cloud software and it's FREE to use! Make your account today at www.TheCastleCloud.com. All dBAir Systems come with a 3 Year Standard licence.

Price:

Talk to an expert about this product




dBAir Sound Meter System for Safety Managers
dBAir Sound Meter System for Safety Managers dBAir Safety Noise at Work dBAir Safety Measurement dBAir Sound Meter System for Safety Managers dBAir Blue Case dBAir Sound Meter System for Safety Managers

Buy Online

* Required Fields

£2,806.00

£2,806.00
Brand Castle Group
Application Noise at Work
Class Class 1, Class 2
Weightings A, C, Z
Measurement Parameters Leq, Lmin, Lmax, Peak, Dose, HSE Exposure Points, Lep’d (LEX), Hearing Protector Calculator
Features 1/1 Octave Bands, Hearing Protection Database, WiFi Data Transfer, Dose, Data Logging
Available Outside the UK? Yes

dBAir Sound Meter System for Safety Managers

dBAir Safety Managers Systems Class 1

Designed specifically for Safety Managers, the dBAir Safety Managers System comprises everything you require to carry out assessments to the Control of Noise at Work Regulations 2005, as well as being the ideal system for International Occupational Health Monitoring. All of the Castle dBAir Safety models come with built-in access to the highly sought after “Hearing Protection Database”, which instantly shows you how much protection an operator can expect when using any particular hearing protection device.

  • Exposure Assessments
  • Factory Noise Mapping
  • SNR and HML Hearing Protection Assessment
  • Litigation Defence

Includes GA611 Class 1 Acoustic Calibrator


dBAir Safety Managers Systems Class 2

This Castle dBAir Safety Managers System - Class 2 comes in a dedicated Occupational Safety mode, which captures all of the data that you require for Noise at Work Risk Assessments in one measurement. As above, the dBAir model in this systems comes with the sought after “Hearing Protection Database”.

  • Exposure Assessments
  • Factory Noise Mapping
  • SNR and HML Hearing Protection Assessment

Includes GA612 Class 2 Acoustic Calibrator


The Castle Cloud

The Castle dBAir uses the revolutionary new Castle Cloud Software. Hosted online, all you need to access it's entire software capabilities is an internet browser.

  • Data Wirelessly Uploads from the dBAir to the Castle Cloud
  • Data can still be downloaded using a cable if required
  • Secure Data Storage and Automatic Back-ups
  • Simple and slick interface allowing even first time users to capitalise on The Castle Cloud's vast features
  • Automatic updates mean no downloads ever required.


The Castle dBAir works wirelessly with The Castle Cloud software and it's FREE to use! Make your account today at www.TheCastleCloud.com.
All dBAir Systems come with a 3 Year Standard licence.

Video





Simon Bull announces the NEW Castle dBAir WiFi Sound Meter


Technical Specification

Technical Specification

Applicable StandardsIEC 61672-1:2013 IEC 61260-1:2014 (Where Octave Bands Fitted) IEC 61252:1993 amendment 1:2000 (Where Exposure Fitted)
MicrophoneClass 1:Type 1 Pre-Polarised ½” (50mV/Pa) Condenser Microphone -26 dB ± 2 dB re 1V/Pa Class 2:Type 2 Pre-Polarised ½” (25mV/Pa) Condenser Microphone –32 dB ± 3 dB re 1V/Pa
Measurement RangesLinear Operating Range: 95dB
Noise FloorTypical ’A’ WeightingFrequency WeightingsMeasurement 1: A, C or Z Measurement 2: A, C or Z
Frequency Range1 Hz - 20 kHz (electrical characteristics) Class 1: 12.5 Hz - 20 kHz (including microphone) Class 2: 16Hz - 16kHz (including microphone)
Time WeightingMeasurement 1: Slow, Fast, Impulse Measurement 2: Slow, Fast, Impulse
Display2.4” Full Colour TFT 240x320 pixels
Dual MeasurementsSimultaneous dual measurement with independent time and frequency weightings
Octave Band AnalysisWhere fitted 1/1 or 1/3 octave band analysis on measurement 1 only.

Measurement Parameters

dBAir Safety:LSPL, LEQ, LMAX, LMIN, Peak, LEP’d, Exposure Points, Dose, Hearing Protector Calculator
dBAir Safety Octave:LSPL, LEQ, LMAX, LMIN, Peak, LEP’d, Exposure Points, Dose, Hearing Protector Calculator. 1/1 Octaves:
dBAir EnvironmentalLSPL, LE, LEQ, LMAX, LMIN, Peak, Ltm3, Ltm5, Lday, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L2, L5, L10, L50, L90, L95, L98, L99) plus LAF* for Noise act assessment.
dBAir Environmental Octave:LSPL, LE, LEQ, LMAX, LMIN, Peak, Ltm3, Ltm5, Lday, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L2, L5, L10, L50, L90, L95, L98, L99) plus LAF* for Noise act assessment. 1/1 or 1/3 Octaves: LSPL, LE, LEQ, LMAX, LMAX, Ln’s, Peak. 1/3 Octaves.
dBAir Safety & EnvironmentalLSPL, LE, LEQ, LMAX, LMIN, Peak, LEP’d, Exposure Points, Dose, Hearing Protector Calculator, Ltm3, Ltm5, Lday, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (preset to: L1, L2, L5, L10, L50, L90, L95, L98, L99) plus LAF* for Noise act assessment.
dBAir Safety & Environmental Octave:LSPL, LE, LEQ, LMAX, LMIN, Peak, LEP’d, Exposure Points, Dose, Hearing Protector Calculator, Ltm3, Ltm5, Lday, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L2, L5, L10, L50, L90, L95, L98, L99) plus LAF* for Noise act assessment. 1/1 or 1/3 Octaves.
LanguagesEnglish UK, English US, Chinese, French, German, Italian, Portuguese Brazilian, Russian, Spanish.
Time HistoryShort Interval: 10ms to 60m Long Interval: 1s to 24h Smart Timer, Duration Timer or Interval Timer Memory 16GB, 32GB, 64GB Input / Output Connection Micro USB Type B
PowerBatteries: 4 x AA (1.5V) Life: Up to 12 Hours continuous operation (screen settings dependent) USB Socket
Size and Dimensions:Including Pre-Amplifier: 210mm (H) x 70mm (W) x 30mm (D) Excluding Pre-Amplifier: 145mm (H) x 70mm (W) x 30mm (D)
Weight480g approximately (including batteries)

Available Accessories

  • GA607 Dual Level Calibrator KA017
  • Kit Case for dBAir
  • KA022 Weatherproof Enclosure
  • PSU6 Power Supply
  • ZL1093-01 Microphone Extension Cable (1m)
  • ZL1061-01 AC Output Cable

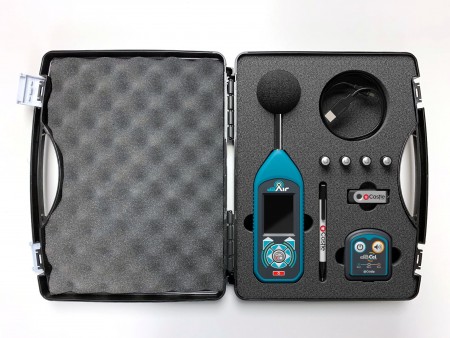

What's in the Box

NK101 dBAir Safety Managers System - Class 1



  • GA141S dBAir Safety Class 1

  • GA611 Calibrator, Class 1

  • CCSTD 3 Year Standard Account for Castle Cloud (10 Users, 10 Instruments)

  • KA017 Protective System Carry Case

  • dB001 dBAir Rubber Case in Blue


NK102 dBAir Safety Managers System - Class 2



  • GA241S dBAir Safety Class 2

  • GA612 Calibrator, Class 2

  • CCSTD3 3 Year Standard Account for Castle Cloud (10 Users, 10 Instruments)

  • KA017 Protective System Carry Case

  • dB001 dBAir Rubber Case in Blue

Downloads and Datasheets

Download English Manual: dBAir Sound Level Meter Brochure

Download Brochure in English: dBAir Sound Level Meter Manual

Download Brochure in Spanish: dBAir Sound Level Meter Brochure in Spanish

Software

Manage your data professionally with secure cloud software

With secure Cloud software at TheCastleCloud.com you can securely access your data from any internet browser on any device. TheCastleCloud is a feature packed noise analysis software system, with added benefits:

  • No downloads ever required
  • No installation required
  • Unlimited number of devices
  • Extra security through Cloud hosting
  • Data is automatically backed up

Find out more at TheCastleCloud.com

Key Features

  • Data Wirelessly Uploads from the dBAir to the Castle Cloud
  • Data can still be downloaded using a cable if required
  • Secure Data Storage and Automatic Back-ups
  • Simple and slick interface allowing even first time users to capitalise on The Castle Cloud's vast features
  • Automatic updates mean no downloads ever required.
  • Customised Reporting
  • Free "Calculators"
  • Free Guides and Help Videos
  • Free Instrument Register

Any Device, Anywhere.

PC, Mac, Tablet or phone, you can access your account and data from any device, anywhere in the world!

No Cables Necessary

At the push of a button the dBAir wirelessly, quickly and securely sends all of your data to your account in The Castle Cloud.

Secure Backup

Not only do we regularly back-up all your data onto secure servers, you can also download your own data at any time onto your device.

Instant Data - No Software Needed

As soon as you log into your Castle Cloud account, your data will be waiting for you primed for analysis and report creating. Alternatively, use a USB cable to copy a csv file straight off the meter!

Easily Manageable

Set Administration Levels for different staff, ensuring the safety of your data whilst ensuring you get the most out of your results.

Why Cloud?

Cloud softare isn't just the future, it's the present! If you use Apple, Dropbox, Microsoft or Google then you're already on the cloud and benefiting from the power and flexibility that brings.

The Castle dBAir works wirelessly with The Castle Cloud software and it's FREE to use! Make your account today at www.TheCastleCloud.com. All dBAir Systems come with a 3 Year Standard licence.
