| Boxed Weight (kg) | 1 |
|---|---|
| Brand | Kimo |
| Application | HVAC, Workplace |
| Features | Airflow, Direct Reading |
| Available Outside the UK? | Yes |

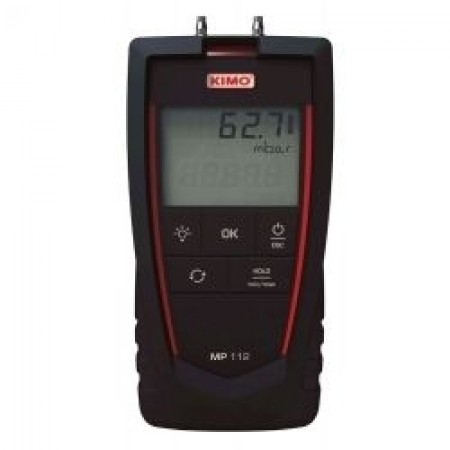

This is the portable micro manometer with an integrated pressure sensor. The units of measurement for this instrument is kPa, inWg, mbar, mmHg, PSI, bar and it has a measurement range of 0 to 2000 mbar. It comes supplied with 2 x1m of silicone tube (black and white), a stainless steel tube Ø a calibration certificate and a soft transport case.
The functions of this instrument are differential pressure, Hold function, pressure, manual auto calibration, min/max. values. Includes a manufacturers certificate of conformance and soft case.
| Measuring Element | piezoresistif sensor |
| Overpressure Allowed | MP 100 : 250mbar, MP101: 700mbar, MP105: 1.4bar, MP112: 3 bar MP 120: 250 mbar |
| Pressure Connectors | MP 100/101/120 : Ø 6.2 mm barbed connectors made of nickelled brass MP 105 et 112: Ø 4.6 mm threaded connectors made of nickelled brass |
| Display | 2 lines, LCD technology. Sizes 50 x 34.9 mm. 1 line of 5 digits with 7 segments (value) 1 line of 5 digits with 16 segments (unit) |
| Housing | Shock-Proof made of ABS, IP54 Protection |
| Keypad | Metal-Coated with 5 keys |
| Conformity | electromagnetical compatibility (NF EN 61326-1 guideline) |
| Power Supply | 1 alcaline battery 9V 6LR61 |
| Operating Temperature | from 0 to 50°C |
| Storage Temperature | from -20 to +80°C |
| Auto Shut-Off | adjustable from 0 to 120 min |
| Weight | 190g |
| Languages | French, English |
