| Brand | Casella |
|---|---|
| Application | Noise at Work |
| Weightings | A, C, Z |
| Measurement Parameters | Leq, Lep’d (LEX) |
| Available Outside the UK? | Yes |
Hire this kit of 5 Casella dBadge2 Noise Dosemeters and take your noise at work assessments to the next level.
The Casella dBadge2 is the ideal tool for a large variety of noise at work assessments for whatever industry or environment you work in.
The dBadge2 personal noise dosimeter adopts a large OLED colour screen, displaying colour coded statuses and alarms. This allows the operator a method of real time data interpretation at a quick glance. Alarms can be personalised to the values or limits you require, and only triggered when these levels are exceeded.
dBadge2 brings motion sensing technology to it's long list of features, allowing managers to ensure employee's have worn the dBadge2 for the full shift. This gives you an extra level of confidence that your data from your measurements are valid and accurate.
The dBadge2 personal noise dosimeter has a ‘multiple simulated dosimeter’ capability to display noise exposure results according to differing regional or international protocols. These simulated dosimeters simply define the measurement parameters displayed on screed, e.g. ISO, OSHA, MSHA, ACGIH set-ups as well as user defined set-ups.

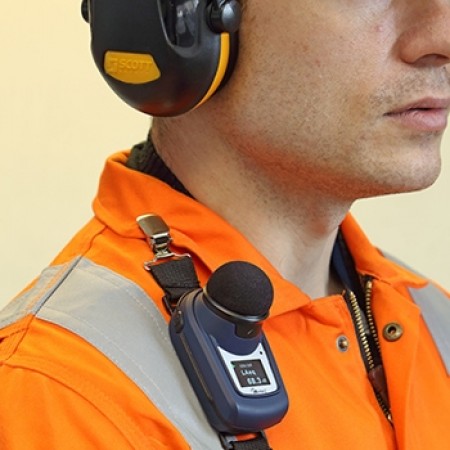

This is the Casella dBadge Noise Dosemeter Kit of 10 which is the world’s first all-digital badge style noise dosemeter. It is cable free and small enough making sure that it does not interfere with day to day work. It can be connected to a PC using an infra-red cable meaning that all data can be downloaded, analysed and reported using Insight data management software. This dosemeter has full data logging capacity. It also mounts the shoulder of the worker and monitors the noise exposure throughout the workers shift.
The dBadge noise dosemeter can be hired for one week or more to assess the noise levels that your workers are being exposed to. Particularly useful for people who move around a lot, the dBadge kit contains five dosemeters, making it ideal for monitoring a larger number of people during the hire period. Loss/Damage Waiver – 10% addition to total rental price Return Carriage to Castle Group – £20.00 All prices quoted exclude VAT.
Acoustic
| Operating Range | 65 to 140.3 dB RMS 95 to 143.3 dB Peak Freq. Weightings: RMS: "A" (and "C" on Plus version) |
| Peak | A, C and Z (Linear) |
| Time Weightings | Fast, Slow and Impulse Amplitude Weigtings: Q=3 and Q=5 Threshold 1: 70 to 90dB in 1dB steps |
| Threshold 2 | 70 to 90dB in 1dB steps |
Measurements
| OSHA | LAavg (Q=5) LZpeak LASmax %Dose (Q=5) Projected %Dose TWA |
| ISO | LAeq LCpeak LEP d Pa2Hours Projected %Dose (Q=3) |
| General | LAFmax LAFmin LASmin LAIeq LAImax LAImin LApeak |
Technical
Default ModesOSHA and ISO
| Memory Capacity | 180 hours (non volatile, 10 years storage) |
| Calibration Info | Dates, Times and Levels |
| Security | Lock via Keys |
| Power | Internal NiMH Cells |
| Battery Life | 28 hours |
| Output to PC | Infra-red to USB (PC) cable |
| Time History | LAavg (Q=5) LAeq LZPeak LCPeak (not Lite version) Storead as 1 minute values |
Physical
| Dimensions | 80 x 47 x 52mm or 3.1" x 1.8" x 2.0" (including windshield) |
| Weight | 71g or 2.5oz (including mount) |
| Display | Graphic LCD 96 x 26 pixels Environmental |
| Storage | -10° to +50°C |
| Operation | 0° to 40°C |
| Humidity | 30 to 95% RH non-condensing |
|
Standards: |
ANSI S1.25:1991 R2007, IEC 61252 Ed 1.1 (2002-3) |
|
Linear Operating Range: |
55.0-140.3 dB (A) RMS |
|
Peak Measurement Range: |
90.0-143.3dB (C or Z weighted), |
|
Sound Exposure Range: |
0.0- 6,100.0 Pa2Hours |
|
Frequency Weightings: |
A, C and Z, Type 2 |
|
Time Weightings: |
Fast, Slow and Impulse |
|
Exchange Rate: |
Q=3 or Q=5dB exchange rates |
|
Threshold and Criterion: |
70-90dB in 1dB steps |
|
Operating Temperature Range: |
0°C to +40°C (for <±0.5dB error limit) -10°C to +50°C (for <±0.8dB error limit) |
|
Ambient Pressure Range: |
<±0.5dB over 85 - 112kPa, |
|
Humidity Range: |
<± 0.5dB over 30% - 90% (non-condensing), |
|
Storage Temperature Range: |
-10°C to +50°C, |
|
Battery: |
Internal NiMH, 800mAH |
|
Run Time: |
Typically 35 hours using Broadband Mode |
|
|
Typically 15 hours using Octave mode |
|
Charge Time: |
<6 Hours from fully discharged |
|
Maximum Run Duration: |
24 hours |
|
Maximum number of Runs: |
100 |
|
Storage Capacity: |
Internal USD Flash memory - 300 hours of run data (including 1 second profile data) and up to 90 minutes of event audio recording. |
|
PC Interface: |
USB 2.0 Full speed 12Mbps via Docking Station. |
|
Dimensions: |
85L x 54W x 55H mm |
|
Weight: |
117g |
|
Environmental I.P. Rating: |
IP65 (with permeable air vent) |
