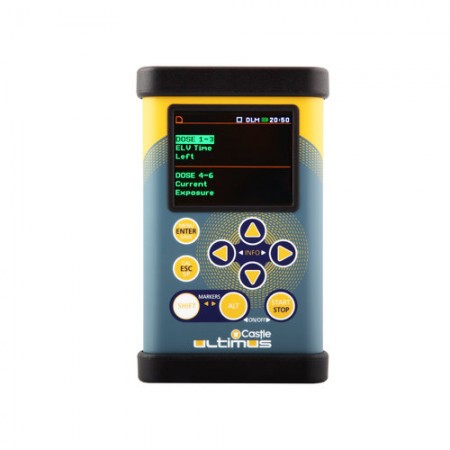

Castle Ultimus Vibration Meter Rental - For Hand Arm Vibration

Be the first to review this product

Free Delivery on this item! Book Online Below

Hire the Castle Ultimus Vibration Meter for all of your tool vibration measurements and protect your workforce against vibration exposure.

The Ultimus Vibration Meter is straightforward to use and is supplied with everything you need to take vibration exposure measurements, including a handstrap accelerometer and PC Software.

For Whole Body Vibration measurements, look at hiring the SV106.

Alternatively, call 01723 584250 to arrange your booking

* Required Fields

1: Choose a Start Date


2: Choose Rental Duration

  • 3 Days
    £180.00 Selected
  • 1 Week
    £300.00 Selected
  • 2 Weeks
    £540.00 Selected
  • 3 Weeks
    £775.00 Selected
  • 4 Weeks
    £775.00 Selected

For longer durations please contact us


3: Optional Extras

Add Damage Waiver +10% of total fee
Add Return Carriage Via Courier - £20

Quantity

Total Price
£

Did you know you can also:

Castle Ultimus
Ultimus Hand Strap Accelerometer Ultimus Hand Strap Accelerometer Grip Ultimus and Hand Strap Accelerometer Ultimus Hand Strap

How do I book?

Booking is easy, choose your Rental Period, Start Date and any available accessories. After you click 'Add to Cart' and complete the checkout process we'll check your product is available and contact you to confirm your order.

The Damage Waiver is calculated at 10% of the cost of rental.

Return Carriage means we will arrange collection and return to us for £20.

Note that the Price shown here will reflect the instrument and Rental Period. Return Carriage and Damage Waiver costs will be added on the Cart and Checkout Pages.

You may also be interested in the following product(s)

Brand Castle Group
Measurement Hand Arm Vibration, Whole Body Vibration

Hand Arm Vibration Assessments Made Easy

The Ultimus Vibration Meter is straightforward to use and is supplied with everything you need to take vibration exposure measurements, including a handstrap accelerometer and PC Software.

The Ultimus is fully compliant and meets all the necessary standards, including: ISO8041:2005, ISO 2631-1,2&5, ISO 5349.

With datalogging features, your data is stored on the 16MB non-volatile memory card. Reults and data can then be easily downloaded to a PC for data analysis using the provided software.

Features

  • Tri-axial Hand Arm vibration Measurements
  • New ‘Grip-to-measure’ Sensor
  • Large Dynamic Range
  • Fully compliant with ISO 8041 : 2005
  • Large Colour Display
  • Large ‘Flash’ memory
  • Simple’ Mode for quick measurements
  • Measures vibration levels meeting ISO 8041:2005, ISO 2631-1,2 & 5 (including VDV and MTVV) and ISO 5349
  • Dual input with 2 profiles with each channel
  • Micro SD card for mass data storage
  • Easy to use interface with colour display

Technical Specification

Standards ISO 8041:2005, ISO 2631-1,2&5, ISO 5349
Meter Mode RMS, VDV, MTVV or Max, Peak, Peak-Peak, Vector, A(8), Dose, ELV, EAV Simultaneous measurement in six channels with independent set of filters and detector constants
Filters Wd, Wk, Wm, Wb (ISO 2631) and Wh (ISO 5349) and Band Limiting filters
RMS and RMQ Detectors Digital true RMS & RMQ detectors with Peak detection, resolution 0.1 dB Time constants from 100 ms to 10 s
Data Logger Time-history data including meter mode results and spectra (option)
Time Domain Recording Simultaneous x, y, z time-domain signal recording, sampling frequency selectable: 375 Hz, 3 kHz or 6 kHz (option)
Analyser 1/1 octave real-time analysis with centre frequencies from 0.5 Hz to 2000 Hz 1/ octave real-time analysis with centre frequencies from 0.4 Hz to 2500 Hz
Measurement Range Transducer dependent: 0.01 ms2 RMS ÷ 50 ms2 Peak (with SV 38V and Wd filter) 0.1 ms2 RMS ÷ 5000 ms2 Peak (with SV105A and Wh filter)
Frequency Range 0.1 Hz ÷ 2000 Hz
Input 2 x LEMO 5-pin: six channels IEPE type or Direct and two channels for force transducers
Dynamic Range 90 dB
Force Range 0.2 N ÷ 100 N (dedicated channels for force transducers)
Sampling Rate 6kHz
Memory Internal 16 MB non-volatile memory Micro SD flash card slot
Interfaces USB 1.1 Client, Extended I/O - AC output (1 V Peak) or Digital Input/Output (Trigger - Pulse)
Power Supply Four AA batteries (alkaline) - operation time > 12 h (6.0 V / 1.6 Ah)2/ Four AA rechargeable batteries (not included) - operation time > 16 h (4.8 V / 2.6 Ah)2
USB interface - 500 mA HUB
Environmental Conditions Temperature from -10°C to 50°C/
Humidity up to 90% RH, non-condensed
Dimensions 140 x 83 x 33 mm (without accelerometer)
Weight (Approx) 390 grams including batteries (without accelerometer) SV105A Accelerometer
Performance Number of axis: 3
Sensitivity (± 5 %): 10.2 mV/(m/s2) at 15.915 Hz, HP1
Measurement Range 0.024 ms-2 RMS,Wh ÷ 180 ms-2 PEAK
Frequency Response (± 3 dB) 1 Hz ÷ 2763 Hz
Resonant Frequency 5.5 kHz (MEMS transducer)
Electrical Noise < 240 µV RMS, Wh weighting, < 2.2 mV RMS, HP1 weighting
Electrical Supply current: < 5,0 mA
Supply Voltage 5.2 V ÷ 16 V
Bias voltage (IEPE): 2,5 V ± 0.05 V
Output Impedance 51 Ω Charge / discharge time constant (start-up time): 30 sec. typ.
TEDS memory: installed (power supply pin)
Environmental Conditions Maximum vibration: 980 m/s2 shock survival for MEMS sensor
Temperature Coefficient <+0.012 dB/°C/ Temperature: from -10°C to +50°C
Humidity up to 90 % RH, non-condensed
Physical Sensing element: MEMS
Cable integrated 1.4 meters long
Connector LEMO 5-pin plug (GA2007 compatible)
Dimensions 69.6 mm x 31.4 mm dimension; thickness from 8.3 mm to 15 mm
Weight 50-60 grams (including cable and one of vibration contact adapters)

What's in the Box

This Kit Includes:

  • 1x GA2007 Ultimus 6 channel human vibration meter
  • Handstrap accelerometer
  • 1x Carry case for vibration meter and accessories
  • 1x PC Software for data viewing and analysis
