GA606 Vibration Calibrator Rental

Be the first to review this product

Free Delivery on this item! Book Online Below

Hire the Castle GA606 and you will be using the most useful vibration calibrators around, perfect for calibrating all of your acceleration, velocity and displacement measuring equipment.

It's single button operation with an auto-power off facility ensures ease of use and a long battery life.

Alternatively, call 01723 584250 to arrange your booking

£150.00

* Required Fields

£150.00

1: Choose a Start Date


2: Choose Rental Duration

  • 1 Week
    £150.00 Selected
  • 2 Weeks
    £270.00 Selected
  • 3 Weeks
    £383.00 Selected
  • 4 Weeks
    £383.00 Selected
  • Short Term
    £90.00 Selected

For longer durations please contact us


3: Optional Extras

Add Damage Waiver +10% of total fee
Add Return Carriage Via Courier - £20

Quantity

Total Price
£

Did you know you can also:

Castle Vibration Meter Calibrator Rental

How do I book?

Booking is easy, choose your Rental Period, Start Date and any available accessories. After you click 'Add to Cart' and complete the checkout process we'll check your product is available and contact you to confirm your order.

The Damage Waiver is calculated at 10% of the cost of rental.

Return Carriage means we will arrange collection and return to us for £20.

Note that the Price shown here will reflect the instrument and Rental Period. Return Carriage and Damage Waiver costs will be added on the Cart and Checkout Pages.

Brand Castle Group
Available Outside the UK? Yes

Vibration Calibrator Rental

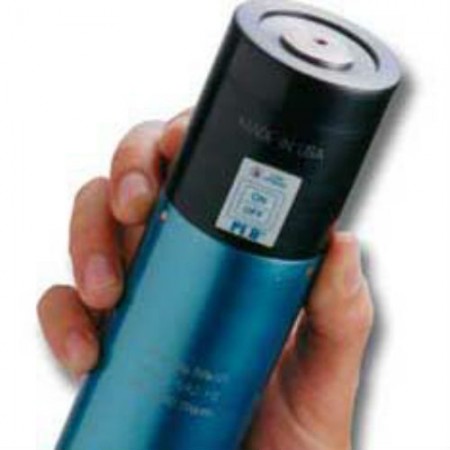

This is the Castle GA606 vibration calibrator which is the most useful small calibrator around. It is a small, self-contained handheld shaker and has been designed for quick and easy checking of accelerometers, vibration monitoring systems and recording systems.

The calibrator is ideal for calibration of acceleration, velocity and displacement measurement equipment. It uses single button operation with an auto-power off facility which ensures that it is easy to use and has a long battery life. This provides a known and controlled selectable RMS or Peak vibration for verification of accelerometers weighing up to 210g. The sinusoidal wave oscillator produces an output of 10 m/s2 (RMS) with less than 5% distortion.

They are powered by a single 9V battery and has dimensions of 134mm x 51mm diameter which makes this instrument extremely portable. This instrument provides 80 to 1600 calibration cycles which depends on accelerometer weight and is powered by a self-contained battery pack. You can override the automatic shut off after a 1.75 minute cycle by a switch to provide continuous operation when required. Internal suspension is protected from overload by mechanical stops.

Features:

  • Switchable 1g RMS or 1g Peak Acceleration output
  • Drives vibration sensors up to 210g
  • Operates at 159.2 Hz
  • Battery powered and adaptable to AC
  • CE compliant

Technical Specification

Performance:
Operating Frequency 159.2Hz ±1%
Acceleration Output 1.00g rms / 9.81ms-2 rms ±3%
Velocity Output 9.81mms-1 rms
Displacement Output 9.81 µs rms
Transverse Output < 3%
Distortion 0-100g load - <2%, 100-210g load - <3%
Maximum Load 7.4oz/ 210g
Automatic Shut-Off Time 1.0 - 2.5 minutes
Electrical
Ramp Up Time < 3 sec
Internal Battery AA x 4
DC Power 10VDC, 2.4A
Battery Life 2g load 8 hours
100g load 10 hours
210g load 2 hours
Physical
Size (Diameter and Height) 2.2in x 7.8in / 56mm x 200mm
Weight (Batteries) 31oz / 900g
Mounting Thread 10-32 Female
Mounting Torque (Maximum) 10in-lb /112 N-cm
Calibration Cycles 2g load: 320 cycles
25g load: 600 cycles
50g load: 1600 cycles
100g load: 400 cycles
150g: 160 cycles
210g load: 80 cycles
Temperature Range +15 to +130°F / -10 to +55°C
