Svan 106 Vibration Meter - Whole Body Rental

Be the first to review this product

Free Delivery on this item! Book Online Below

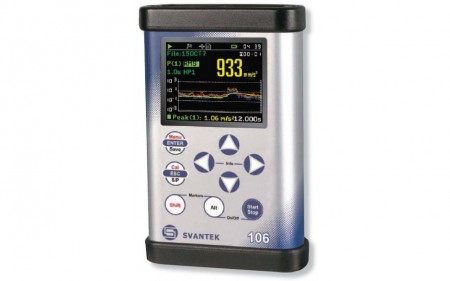

SV 106 is a new six-channel human vibration meter and analyser. Instrument meets ISO 8041:2005 standard and it is an ideal choice for measurements according to ISO 2631-1,2&5 and ISO 5349. They provide human vibration measurements which meet ISO 8041:2005, ISO 2631-1,2&5 (including VDV and MTVV) and ISO 5349.

Alternatively, call 01723 584250 to arrange your booking

* Required Fields

1: Choose a Start Date


2: Choose Rental Duration

  • 3 Days
    £180.00 Selected
  • 1 Week
    £300.00 Selected
  • 2 Weeks
    £540.00 Selected
  • 3 Weeks
    £775.00 Selected
  • 4 Weeks
    £775.00 Selected

For longer durations please contact us


3: Optional Extras

Add Damage Waiver +10% of total fee
Add Return Carriage Via Courier - £20

Quantity

Total Price
£
Svan 106 Vibration Meter - Whole Body Rental
Svan 106 Vibration Meter - Whole Body Rental Svan 106 Vibration Meter - Whole Body Rental Svan 106 Vibration Meter - Whole Body Rental Svan 106 Vibration Meter - Whole Body Rental Svan 106 Vibration Meter - Whole Body Rental Svan 106 Vibration Meter - Whole Body Rental Svan 106 Vibration Meter - Whole Body Rental

How do I book?

Booking is easy, choose your Rental Period, Start Date and any available accessories. After you click 'Add to Cart' and complete the checkout process we'll check your product is available and contact you to confirm your order.

The Damage Waiver is calculated at 10% of the cost of rental.

Return Carriage means we will arrange collection and return to us for £20.

Note that the Price shown here will reflect the instrument and Rental Period. Return Carriage and Damage Waiver costs will be added on the Cart and Checkout Pages.

Brand Svantek
Measurement Whole Body Vibration

Svantek SV 106 for Whole Body Vibration Measurements

SV 106 is a new six-channel human vibration meter and analyser. Instrument meets ISO 8041:2005 standard and it is an ideal choice for measurements according to ISO 2631-1,2&5 and ISO 5349. This revolutionary, pocket-size instrument enables simultaneous measurements with two triaxial accelerometers (e.g. both-hands vibration or triaxial SEAT transmission measurements are possible). The RMS, Peak, Peak-Peak, VDV, MTVV, A(8) or Dose results with all required weighting filters for the HVM measurements are available with this instrument. Using computational power of its digital signal processor, the SV 106 can perform real-time 1/1 or 1/3 octave analysis simultaneously to the meter mode. Advanced time-history logging and time-domain signal recording (according to the ISO 2631-5) to built-in Micro SD flash card give almost unlimited capabilities of data storage. Results can be easily downloaded to PC using USB interface and SvanPC+ software. SvanPC+ software also provides the setup-editor function which manages the instrument’s settings. The Whole-Body vibration measurement is easier thanks to SV 38V seat-accelerometer which can be placed directly on the seat-cushion, floor or fixed to the back of the seat. Features:
  • Human Vibration measurements meeting ISO 8041:2005, ISO 2631-1,2&5 (including VDV and MTVV) and ISO 5349
  • Six channels for acceleration (IEPE type) and two channels for static force measurements
  • Whole-Body measurements:
  • Low-cost seat accelerometer SV 38V
  • Seat accelerometer SV 39A/L
  • Time-domain signal recording (meeting ISO 2631-5)
  • 1/1 and 1/3 octave real-time analysis
  • Advanced data logger including spectral analysis
  • Micro SD flash card for mass data storage
  • USB 1.1 Client interface
  • Integration time programmable up to 24 h
  • SvanPC+ software for easy instrument setup and data download
  • Easy in use, user friendly interface with colour display
  • Pocket size (140 x 83 x 33 millimetres)
  • Weight only 390 grams including batteries
  • Tri-Axial vibration system and analyser with optional whole-body vibration
  • Measures vibration levels meeting ISO 8041:2005, ISO 2631-1,2 & 5 (including VDV and MTVV) and ISO 5349
  • Dual input with 2 profiles with each channel

Technical Specification

Standards ISO 8041:2005, ISO 2631-1,2&5, ISO 5349
Meter Mode RMS, VDV, MTVV or Max, Peak, Peak-Peak, Vector, A(8), Dose, ELV, EAV Simultaneous measurement in six channels with independent set of filters and detector constants
Filters Wd, Wk, Wm, Wb (ISO 2631) and Wh (ISO 5349) and Band Limiting filters
RMS and RMQ Detectors Digital true RMS & RMQ detectors with Peak detection, resolution 0.1 dB Time constants from 100 ms to 10 s
Data Logger Time-history data including meter mode results and spectra (option)
Time Domain Recording Simultaneous x, y, z time-domain signal recording, sampling frequency selectable: 375 Hz, 3 kHz or 6 kHz (option)
Analyser 1/1 octave real-time analysis with centre frequencies from 0.5 Hz to 2000 Hz 1/ octave real-time analysis with centre frequencies from 0.4 Hz to 2500 Hz
Measurement Range Transducer dependent: 0.01 ms2 RMS ÷ 50 ms2 Peak (with SV 38V and Wd filter) 0.1 ms2 RMS ÷ 5000 ms2 Peak (with SV105A and Wh filter)
Frequency Range 0.1 Hz ÷ 2000 Hz
Input 2 x LEMO 5-pin: six channels IEPE type or Direct and two channels for force transducers
Dynamic Range 90 dB
Force Range 0.2 N ÷ 100 N (dedicated channels for force transducers)
Sampling Rate 6kHz
Memory Internal 16 MB non-volatile memory Micro SD flash card slot
Interfaces USB 1.1 Client, Extended I/O - AC output (1 V Peak) or Digital Input/Output (Trigger - Pulse)
Power Supply Four AA batteries (alkaline) - operation time > 12 h (6.0 V / 1.6 Ah)2/ Four AA rechargeable batteries (not included) - operation time > 16 h (4.8 V / 2.6 Ah)2
USB interface - 500 mA HUB
Environmental Conditions Temperature from -10°C to 50°C/
Humidity up to 90% RH, non-condensed
Dimensions 140 x 83 x 33 mm (without accelerometer)
Weight (Approx) 390 grams including batteries (without accelerometer) SV105A Accelerometer
Performance Number of axis: 3
Sensitivity (± 5 %): 10.2 mV/(m/s2) at 15.915 Hz, HP1
Measurement Range 0.024 ms-2 RMS,Wh ÷ 180 ms-2 PEAK
Frequency Response (± 3 dB) 1 Hz ÷ 2763 Hz
Resonant Frequency 5.5 kHz (MEMS transducer)
Electrical Noise < 240 µV RMS, Wh weighting, < 2.2 mV RMS, HP1 weighting
Electrical Supply current: < 5,0 mA
Supply Voltage 5.2 V ÷ 16 V
Bias voltage (IEPE): 2,5 V ± 0.05 V
Output Impedance 51 Ω Charge / discharge time constant (start-up time): 30 sec. typ.
TEDS memory: installed (power supply pin)
Environmental Conditions Maximum vibration: 980 m/s2 shock survival for MEMS sensor
Temperature Coefficient <+0.012 dB/°C/ Temperature: from -10°C to +50°C
Humidity up to 90 % RH, non-condensed
Physical Sensing element: MEMS
Cable integrated 1.4 meters long
Connector LEMO 5-pin plug (GA2007 compatible)
Dimensions 69.6 mm x 31.4 mm dimension; thickness from 8.3 mm to 15 mm
Weight 50-60 grams (including cable and one of vibration contact adapters)

What's in the Box

This Kit Includes:

  • 1x SV106 6 channel human vibration meter
  • Choice of accelerometers from drop down boxes
  • 1x Carry case for vibration meter and accessories
  • 1x PC Software for data viewing and analysis

Software

About SvanPC++

This piece of advanced software supports Svantek measuring instruments. Each Svantek device is is easy to use and a complete measuring systems because of the functionalities and extended capabilities in this advanced application. The software has been divided for several specialised modules by distinguishing application fields in order to give users the perfectly customised, powerful and sophisticated tool. The functions provided by the main module include measurement data downloading from instruments to PC, measurement setups creating, basic Leq/RMS recalculation, measurement results in text, tabular and graphical format, export data to spread sheets or text editor applications.

Features include:

  • Being able to easily download data of measurements to a PC
  • Total Leq/ RMS recalculation
  • Quick reporting tool
  • A variety of presentation results including text, table and graphical format
  • Advanced customisation of each view
  • Creation of measurement setups
  • Merging of measurement files.
