Vibrock V901 Seismograph Rental

Be the first to review this product

Free Delivery on this item! Book Online Below

The V901 Seismograph provides an ideal vibration monitoring solution for unattended ground vibration monitoring, for a wide range of applications, such as: Quarries, Demolition Sites, Drilling, Railways, Traffic and much more. It can also measure air over-pressure from blasting using the optional microphone. Battery life is up to 3 weeks for continuous 24 hour monitoring.

Alternatively, call 01723 584250 to arrange your booking

£175.00

* Required Fields

£175.00




1: Choose a Start Date









2: Choose Rental Duration




  •


                        1 Week




                        £175.00                        Selected



    •

  •


                        2 Weeks




                        £315.00                        Selected



    •

  •


                        3 Weeks




                        £446.00                        Selected



    •

  •


                        4 Weeks




                        £446.00                        Selected



    •

  •


                        Short Term




                        £105.00                        Selected



    •



For longer durations please contact us










3: Optional Extras





                Add Damage Waiver +10% of total fee














                Add Return Carriage Via Courier - £25

















Quantity
















                Total Price




                £



























Vibrock V901 Seismograph Rental




        Vibrock V901 Seismograph Rental
	Vibrock V901 Seismograph
	V901 Seismograph












How do I book?



Booking is easy, choose your Rental Period, Start Date and any available accessories. After you
            click 'Add to Cart' and complete the checkout process we'll check your product is available and
            contact you to confirm your order.


The Damage
                Waiver is calculated at 10% of the cost of rental.


Return Carriage means we will arrange collection and return to us for £25.



Note that the Price shown here will reflect the instrument and Rental Period. Return Carriage and
            Damage Waiver costs will be added on the Cart and Checkout Pages.




























                    Brand
                                         Vibrock




                    Measurement
                                         Building Vibration, Environmental Vibration




                    Available Outside the UK?
                                         Yes

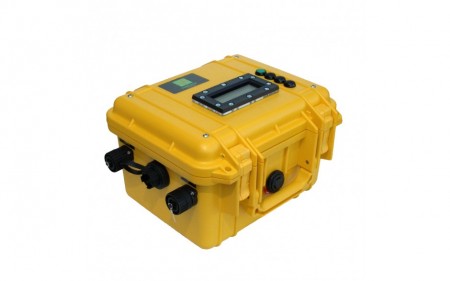

V901 Vibrock Seismograph for Hire

This is the Vibrock V901 Seismograph and it provides an ideal vibration monitoring solution for the environment. It has been designed for measuring environmental vibration levels such as construction sites and road traffic levels. The seismograph is a self-contained, battery powered vibration system which can run for up to 3 weeks. Results can be downloaded to a PC where they can then be further analysed, printed and saved using the software supplied.


Key Features
  • Impulse mode for blast monitoring

  • Continuous mode for piling, rail and road traffic monitoring

  • Tri-axial geophone sensor

  • Features: l triggering from 0.1 mm/s

  • Single range from 0.1 mm/s to 200 mm/s

  • auto record length from 2 to 18 seconds (in impulse mode)

  • Can trigger and record PPV, acceleration or displacement parameters

  • Air overpressure from 100 to 140 dB Linear Peak

  • Memory for about 300 events or 30 days continuous recording

  • Battery operated, uses 2 Alkaline ‘D’ cells (or external 12 volt supply)

  • Built in timer function

  • Instant readout and review of memory event results on LCD

  • Download to PC with supplied RS232 cable and Windows™ based software

  • Supplied with Shoulder Bag
    •




    Technical Specification




      Number of Channels     4 (optional 7)
       A/D Conversion      1millisecond each channel
       A/D Resolution       10 bit to 13mm/S then 10 bit to 200mm/S
       Resolution       0.012mm/S to 13mm/S then 0.2mm/S
       Transducer       3 component geophone pack
       Natural Frequency       4Hz
        Length of Extension Cable       up to 1000metres
      Seismograph Power     2 number D cells (Alkaline battery)
      Battery Life      30 days continuous monitoring
       External Power       12V DC
       Memory       Non-Volatile
       Memory Size       about 300 short trigger events or 30 days Continuous or any combination of these
       Communications Port       RS232
       Communications Protocol        8 bit no parity 9600 baud
      Measurement Parameters    Peak particle velocity (mm/S)
     Acceleration (g)
     Displacement (mm)
     Air Overpressure (dB)
      Instrument Protection       IP65
       Transducer Protection       IP67
       Conformity       CE
       Environmental       IEC 68-2
       EMC Compliance        EN 61010, EN50 081, EN 50, 082
       Weight of Instrument      4Kg






    Downloads and Datasheets




    Datasheets

V901 Seismograph
