This is the GA2005 Vibration Meter System, which is the simple to use meter for Hand Arm and Whole Body Vibration Measurements. This system available for hire is supplied with everything you need to conduct measurements and assessments for The Control of Vibration at Work Regulations 2005.

This kit includes:

  • Triaxial Block Accelerometer for Hand Arm Vibration
  • Seatpad Triaxial Accelerometer for Whole Body Vibration

Alternatively, call 01723 584250 to arrange your booking

£415.00

* Required Fields

£415.00

1: Choose a Start Date


2: Choose Rental Duration

  • 1 Week
    £415.00 Selected
  • 2 Weeks
    £747.00 Selected
  • 3 Weeks
    £1,059.00 Selected
  • 4 Weeks
    £1,059.00 Selected
  • Short Term
    £269.00 Selected

For longer durations please contact us


3: Optional Extras

Add Damage Waiver +10% of total fee
Add Return Carriage Via Courier - £20

Quantity

Total Price
£
Vibration Meter for Hire

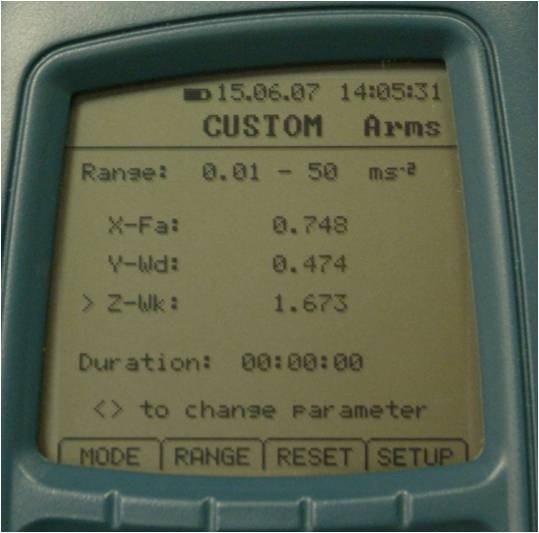

Excieo Whole Body Vibration Meter for Hire Vibration Meter Screen Hand Arm Meter Screen Vibration Meter for Hire

How do I book?

Booking is easy, choose your Rental Period, Start Date and any available accessories. After you click 'Add to Cart' and complete the checkout process we'll check your product is available and contact you to confirm your order.

The Damage Waiver is calculated at 10% of the cost of rental.

Return Carriage means we will arrange collection and return to us for £20.

Note that the Price shown here will reflect the instrument and Rental Period. Return Carriage and Damage Waiver costs will be added on the Cart and Checkout Pages.

Brand Castle Group
Measurement Hand Arm Vibration, Whole Body Vibration
Available Outside the UK? Yes

Vibration Meter System for Hand Arm and Whole Body Vibration - Hire it Today!

This Vibration Meter System provides you with everything you need to perform vibration measurements during your assessments for The Control of Vibration at Work Regulations 2005.

The Excieo vibration meter has a large memory, capable of storing all the data you will require for whole-body vibration risk assessments and control measurements. The kit comes with software (VIBdataPro) so that your data can be downloaded to a PC for further analysis.

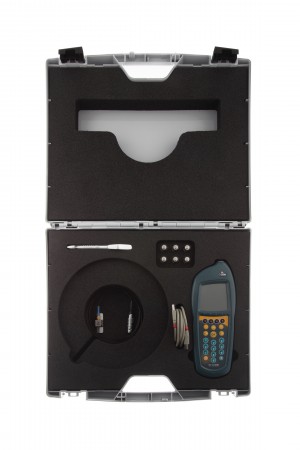

The Excieo vibration meter is incredibly easy to use and the vibration meter hire kit comes with all required connectors and cables in an attache case. Features

  • Tough Case for All-Weathers
  • Simplicity and Power
  • Future Proof
  • USB Connectivity to the PC
  • Bi-Directional RS-232 interface to communicate with a printer

Applications include:

  • Hand-Arm Vibration Risk Assessments
  • Whole-Body Vibration Risk Assessments
  • Human Vibration control measurements
  • Environmental monitoring
  • Machine condition monitoring
  • Bearing condition checking
  • Engineering measurements
  • Product emissions testing
  • Production quality checking

Technical Specification

PRO-DX EXCIEO: MODELS

Excieo H (GA2005H) - Hand Arm Vibration

Excieo W (GA2005W) - Whole Body Vibration Excieo C (GA2005C) - HAV and WBV Combined

Excieo E*(GA2005E) - Environmental & Engineering Vibration

Excieo M (GA2005M) - Multi-Function Vibration

APPLICABLE STANDARDS

ISO8041:1990 type 1 and latest draft of ISO8041 revision (Human

Vibration Meters) ISO8041: 2005

BS4675:1978, ISO2954:1975 Requirements for Instruments measuring

vibration severity ROHS compliant

ACCELEROMETERS

For Hand Arm Vibration: KD1006

Sensitivity: 10mV/g, Range (f.s.) ±500g,

Frequency response 2-5000Hz ±10%

For Whole Body Vibration: KD1007

Sensitivity: 100mV/g, Range (f.s.) ±50g,

Frequency response 0.5-3000Hz ±5%

For Environmental Vibration: TBA

For Engineering Vibration (single Axis): KD1003 Sensitivity: 100mV/g, Range (f.s.) ±80g,

Frequency response 2-13000Hz +5%

DISPLAY

Electro-Luminescent, Back-lit LCD panel (160x160 pixels)

Vibration Meter displays

 Numerical: Parallel Tri-axial results

 Bar graph: Time History plot

Real time clock: Day, Month, Year, Hour, Minute, Second language display:

English, French*, German*, Spanish* and Italian*

LEVEL RANGE

Linear Operating Range: 74 dB

HARM: RMS Range: 0.02-5000m/s2

Peak Range: 0.2-7000m/s2

WBV & Engineering: RMS Range: 0.001-500m/s2

Peak Range: 0.02-700m/s2

NOISE FLOOR

Typical: TBA

FREQUENCY WEIGHTING

Severity: Ws,Fa(0.4-100Hz), Fb(0.4-1250Hz), Fc(6.3-1250Hz)

HARM: Wh

WBV: Wb,Wc,Wd,We,Wj,Wk,Wm

FREQUENCY RANGE

1Hz - 6.3 kHz (electrical characteristics)

See accelerometer frequency range

DETECTORS

rms, rmq and Peak

REAL-TIME TRI-AXIAL MEASUREMENT

Real-time 3 channel measurement to give simultaneous display and

integration for tri-axial measurement.

MEASUREMENT PARAMETERS

All Variations (H, W, C, E & M)

Arms, Amin, Amax, Aeq, Amp, PEAK, Velocity, Displacement.

Variations W, C & M

CFmp, CF, VDV

Variations E & M

Fast-data, VDV

Units: m/s2, cm/s2 , g, dB, mm/s, µm

LOG TIME INTERVALS

1s -12hours user definable in one second intervals (all

parameters) up to 99 hours, cumulative every 12 hours.

TRIGGER FUNCTION

Trigger source: internal value (rising or falling)

TIMER FUNCTION

A Program Log Timer to give multiple Start-Stop timings (with sleep mode),

Repeat timer and programming function* to control multiple measurement

tasks (date independent). Real Time Clock and Calendar, plus measurement

duration.

REAL TIME CLOCK

Time and Date - accuracy better than 5s per day.

MEMORY

4Mb On-board FLASH, 2Mb available for data storage

INPUTS

3-Channel input for Voltage mode, charge mode (via interface unit) and Direct

DC Power input via external socket: 12V

SIGNAL OUTPUT

RS232: 19200 Baud, 8 bit, no parity, bi-directional, standard USB

interface, 'AC output

PROCESSING

A to D Converters: 20-bit Stereo, 16kHz sampling DSP: 5MIPS, 5MHz

processor Controller: 16bit, running at 16MHz

POWER REQUIREMENTS

12 volts DC (with mains adapter), Batteries: 6 x MN1500 (size AA),

Life: approximately 12 hours (alkaline batteries, continuous operation).

Simultaneous mains and battery operation.

SIZE AND WEIGHT

Dimensions: Height: 255mm (without Cable)

x Width: 100mm (max) x Depth: 49mm Weight: 780g approximately (including batteries)

MANUALS

Multi-language manuals*: English, French, German, Spanish and Italian.

What's in the Box

GA2005M - Pro-DX Excieo HARM and WBV Vibration Meter
KD1006 - Harm Triaxial Accelerometer
ZL1096-XX - Tri-axial accelerometer cable (for KD1006)
KD1216 - HARM Mounting
KA016V - Kit case for Excieo
KD1009 - Tri-axial seat-pad accelerometer (with cable)
