| Brand |
Wavecontrol |
| Frequency Range |
1Hz - 400kHz, 10Hz - 3kHz, 100kHz - 3GHz, 100kHz - 6GHz, 100kHz - 8GHz, 300kHz - 18GHz |
| Probe Size |
270mm x 115mm, 284mm x 60mm |
| Sensor Type |
Isotropic, RMS Diode Technology |
| Measurement Field |
(E) Electric Field, (H) Magnetic Field |
| Available Outside the UK? |
Yes |

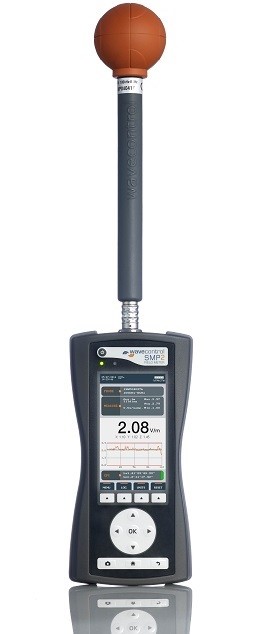

SMP2 EMF Monitoring Meter
This package includes the SMP2 EMF Monitoring Meter-Dual. It comes as standard with the WPF18 and WP400 Probes. It is a handheld field strength meter with broadband and a low frequency and it does not require a probe. This is an ideal solution for a wide range of industry sectors, including Railways, Power plants, Manufacturing, Chemical, Medical, Defence, Telecommunications, RFID and EAS, etc. worker safety audits according to the European Directive 2013/35/EU.
Key Applications of this SMP2 EMF Meter System
- Site surveys
- EMF assessments and validation of places for public use
- Certification of telecommunications infrastructure
- mobile telephone stations (BTS)
- power lines
- Industrial facilities machinery.
Key Features
Broadband Measurements 1 Hz - 18GHz With RMS and Isotropic Field Probes Spectrum Analysis 1 Hz - 400 kHz Real-time FFT Weighted Peak Method (WPM) Real-time comparison in % with the selected limits Assessments according to European Directive 2013/35/EU In accordance with international standards: ICNIRP, IEC, EN, IEEE
Features Of The SMP2 EMF Meter
- Unparalleled combination of spectrum analysis and broadband measurements on a single device.
- Low frequency spectrum analysis using FFT (Fast Fourier Transform) and WPM (Weighted Peak Method) techniques.
- Broadband measurements using different field probes (interchangeable and automatic recognition).
- Measurements in accordance with international standards.
- Straightforward and intuitive operation, to achieve reliable, fast and easy RF safety measurements.
Full Features of the SMP2
- 2-in-1: broadband measurements (1 Hz - 18 GHz) and spectrum analysis (1 Hz – 400 kHz)
- Spatial average function.
- Adjustable measurement time from 1s to 100 hours.
- Programmable measurement to start at a given time.
- Graphic display of broadband measurement changes over time.
- Adjustable graph display from 1 s to 12 minutes.
- Programmable alarm function.
- USB and fibre optics connection.
- Large storage capacity.
- Screen-shot function for reporting.
- PC software for control and reporting.
- Results can be uploaded automatically to a web-page control centre.
- Available in several languages.
|
- Real-time FFT-based spectrum analysis using digital processing.
- Weighted Peak Method (WPM) for automatic and real time comparison with limits.
- Special auto-gain function for peak detection (indispensable for procedures such as welding).
- Display of results in RMS and peak values.
- Function for time domain measurement of a specific frequency.
- Automatic field probe recognition.
- E&H field selection.
- Total field value and value for each component (X, Y, Z).
- Frequency SPAN selection.
- High Pass Filters at 1 Hz, 10 Hz, 25 Hz and 100 Hz.
- Max-hold function.
- Display of maximum, minimum and average values.
- Sliding window function according to standards.
|

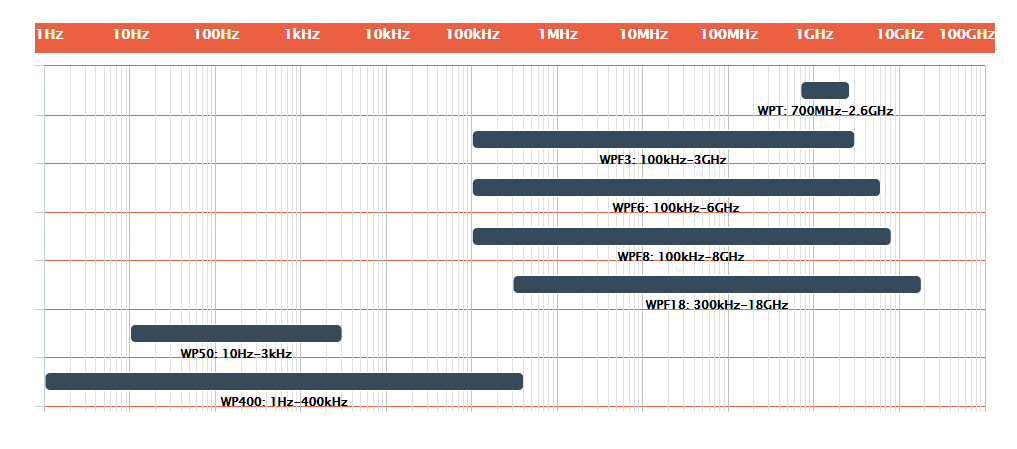

Probe Applications
WPF18 Applications 300kHz - 18gHz Telecommunications:
- Certify and audit telecommunication services (GSM, 3G, TDT, AM, FM, WiFi, etc.).
- Industry:
- Assess radio-electric environment of industrial processes
- Defence:
- Assess and monitor military bases with antennas and other RF sources.
- Laboratories:
- Test laboratories, research centres
- WP400 Applications 1Hz - 400kHz Power grid:
- Spot measurement of E and H at transformer stations and high-voltage lines
- Railway:
- Measurement of E and H fields generated in trains or near railway facilities
- Industry:
- Measurement in manufacturing facilities with strong electromagnetic fields to ensure worker's safety
